Turnboard Secret Corner Mechanism
Turnboard Secret Corner Mechanism
Product Codes

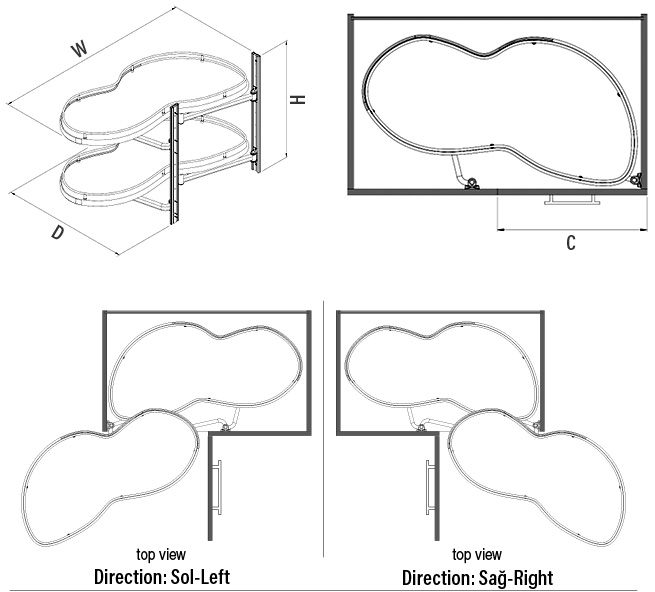

Technical Drawing
Assembly Diagram

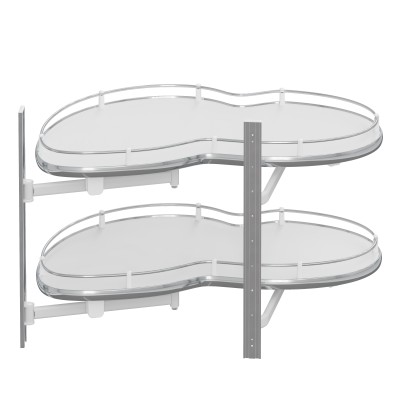

Turnboard Secret Corner Mechanism
Color Options
|
Product Code
W x D x H (mm)
C (mm)
Dir
Box
Volume (m³)
Weight (kg)
|
|
S-3103-A
800 x 400 x 600
400
Left
1
0,069
10,900
|
|
S-3104-A
800 x 400 x 600
400
Right
1
0,069
10,900
|
|
S-3013-A
850 x 475 x 600
450
Left
1
0,069
12,400
|
|
S-3014-A
850 x 475 x 600
450
Right
1
0,069
12,400
|
|
S-3113-A
850 x 490 x 600
500
Left
1
0,069
12,700
|
|
S-3114-A
850 x 490 x 600
500
Right
1
0,069
12,700
|
|
S-3123-A
880 x 495 x 600
600
Left
1
0,075
13,100
|
|
S-3124-A
880 x 495 x 600
600
Right
1
0,075
13,100
|
