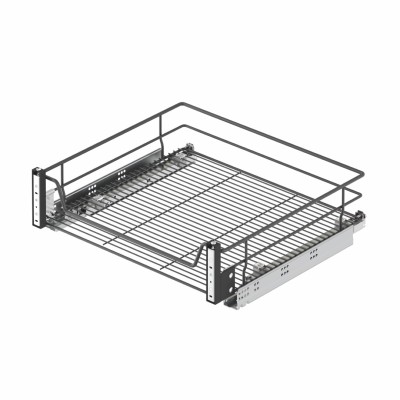

Drawer With Full Extension Undermount Rail Mounted To Lid

Modern mutfaklarin vazgeçilmez aksesuari olan kiler sistemleri; erzaklarin düzenli ve kolay ulasilabilir bir sekilde saklanmasi amaci ile tasarlanmistir.

Product Codes

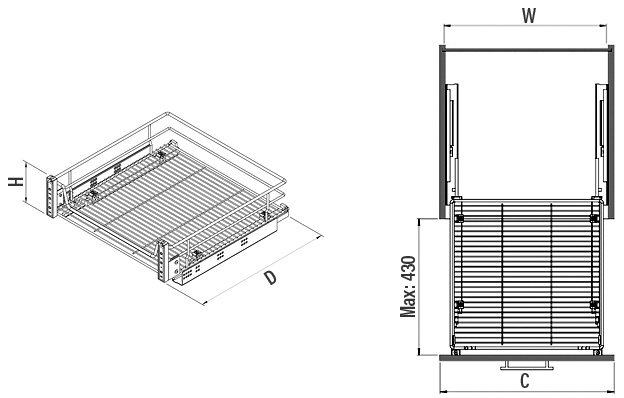

Technical Drawing

Assembly Diagram

Drawer With Full Extension Undermount Rail Mounted To Lid

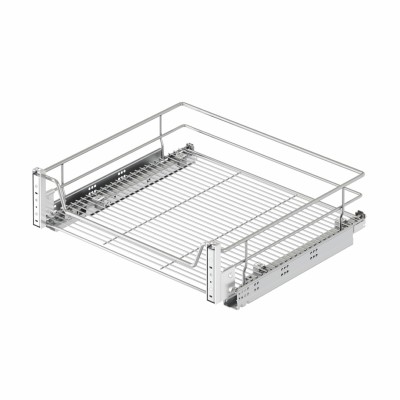

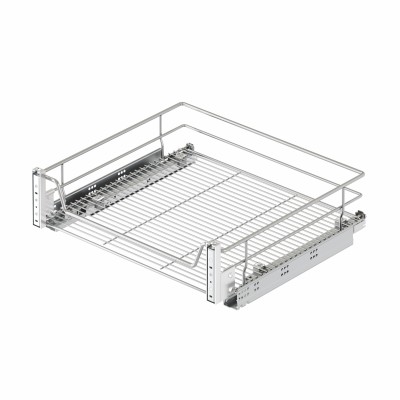

Color Options

Product Code W x D x H (mm) C (mm) Box Volume (m³) Weight (kg)
S-2341-A 310 - 330 x 500 x 160 350 1 0,021 4,900
S-2342-A 360 - 380 x 500 x 160 400 1 0,023 5,000
S-2343-A 410 - 430 x 500 x 160 450 1 0,026 5,200
S-2344-A 460 - 480 x 500 x 160 500 1 0,031 5,300
S-2345-A 510 - 530 x 500 x 160 550 1 0,033 5,600
S-2346-A 560 - 580 x 500 x 160 600 1 0,039 5,800
S-2347-A 660 - 680 x 500 x 160 700 1 0,056 6,800
S-2348-A 760 - 780 x 500 x 160 800 1 0,076 7,000
S-2349-A 860 - 880 x 500 x 160 900 1 0,080 7,500

Product Code

W x D x H (mm)

C (mm)

Box

Volume (m³)

Weight (kg)

S-2341-A

310 - 330 x 500 x 160

350

0,021

4,900

S-2342-A

360 - 380 x 500 x 160

400

0,023

5,000

S-2343-A

410 - 430 x 500 x 160

450

0,026

5,200

S-2344-A

460 - 480 x 500 x 160

500

0,031

5,300

S-2345-A

510 - 530 x 500 x 160

550

0,033

5,600

S-2346-A

560 - 580 x 500 x 160

600

0,039

5,800

S-2347-A

660 - 680 x 500 x 160

700

0,056

6,800

S-2348-A

760 - 780 x 500 x 160

800

0,076

7,000

S-2349-A

860 - 880 x 500 x 160

900

0,080

7,500

Product Code W x D x H (mm) C (mm) Box Volume (m³) Weight (kg)
S-2341-C 310 - 330 x 500 x 160 350 1 0,021 4,900
S-2342-C 360 - 380 x 500 x 160 400 1 0,023 5,000
S-2343-C 410 - 430 x 500 x 160 450 1 0,026 5,200
S-2344-C 460 - 480 x 500 x 160 500 1 0,031 5,300
S-2345-C 510 - 530 x 500 x 160 550 1 0,033 5,600
S-2346-C 560 - 580 x 500 x 160 600 1 0,039 5,800
S-2347-C 660 - 680 x 500 x 160 700 1 0,056 6,800
S-2348-C 760 - 780 x 500 x 160 800 1 0,076 7,000
S-2349-C 860 - 880 x 500 x 160 900 1 0,080 7,500
